KL24HS98G - Electric Bicycle Battery
Spec:KL24HS98G 9Ah
Model No.
  • KL24HS98G.082
Cell Brand
  • Panasonic
Cell Code
  • UR18650AA (停購)
Chemistry
Li-ion

Li-ion

For more deatils, please visit Cell Information.

Voltage
  • 24 V
Capacity
  • 11.25 Ah
Rate
  • 270 Wh
Configuration
  • 7S5P
Inner Resistance
  • ≤75 mΩ
Charge Voltage Limit
  • 29.75 V
Continuous Discharge Current
  • 15 A
10min Discharge Current
  • 18 A
5sec Discharge Current
  • 35 A
Size
  • 317.20 x 148.00 x 56.30 mm
Weight
  • 2.22 kg
Operate Temp. Charge
  • 0~45 ℃
Operate Temp. Discharge
  • -20~60 ℃
Storage Temp.
  • -20~40 ℃
Cycle Life
  • 500 Times
PCB Safety Function
  • Cell balancing
  • Over-charge
  • Over-current protection
  • Over-discharge
  • Secondary protection
  • Temperature protection

All brands, trademarks and registered trademarks are the property of their respective holders.

1. Illustration

1 Key lock
2 15A Fuse
3 4-Level LED indicator
4 Charging input jack
5 Power on/off
2. Features
Safety Devices
  • - Water-resistant, non-flammable and durable ABS plastic top cap.
  • - Built-in PCB protection: preventing short circuit, over-current, over-heat, over-charge, over-discharge.
  • - The internal pack is stabilized by braces: avoiding mechanical accidents caused by vibration.
With built-in fuel gauge in the battery,battery performance and more information could be shown on the connected LCD instrument panel.

With built-in fuel gauge in the battery,battery performance and more information could be shown on the connected LCD instrument panel.

Battery information can be viewed on computer through the connection of data collector.

Battery information can be viewed on computer through the connection of data collector.


The 15A fuse, serves as a second protection device, can prevent the battery pack from excessive discharge.

The 15A fuse, serves as a second protection device, can prevent the battery pack from excessive discharge.

The LED (at the power on/off button of the battery) glows when power is on.

The LED (at the power on/off button of the battery) glows when power is on.


The Four-level LED indicates current power status.

The Four-level LED indicates current power status.

Battery could be recharged either by fastening on the bike or by itself with the provided AC adapter.

Battery could be recharged either by fastening on the bike or by itself with the provided AC adapter.


Battery can be removed from the case by unlocking the key lock.

Battery can be removed from the case by unlocking the key lock.

The key lock is used to fix the battery onto the holder.

The key lock is used to fix the battery onto the holder.


The battery is fixed to the rack by using screws.

The battery is fixed to the rack by using screws.

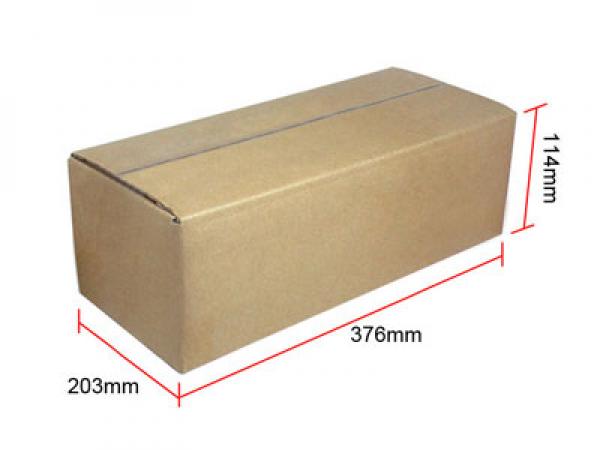

Standard Inner Packing Box
For single battery only.
B7
Weight:600g


Please click here for more details.
